Matplotlib 网格线
我们可以使用 pyplot 中的 grid() 方法来设置图表中的网格线。
grid() 方法语法格式如下:
matplotlib.pyplot.grid(b=None, which='major', axis='both', )
参数说明:
- b :可选,默认为 None,可以设置布尔值,true 为显示网格线,false 为不显示,如果设置 **kwargs 参数,则值为 true。
- which :可选,可选值有 'major'、'minor' 和 'both',默认为 'major',表示应用更改的网格线。
- axis :可选,设置显示哪个方向的网格线,可以是取 'both'(默认),'x' 或 'y',分别表示两个方向,x 轴方向或 y 轴方向。
- **kwargs :可选,设置网格样式,可以是 color='r', linestyle='-' 和 linewidth=2,分别表示网格线的颜色,样式和宽度。
以下实例添加一个简单的网格线,参数使用默认值:
实例
import matplotlib. pyplot as plt
x = np. array ( [ 1 , 2 , 3 , 4 ] )
y = np. array ( [ 1 , 4 , 9 , 16 ] )
plt. title ( "yssmx grid() Test" )
plt. xlabel ( "x - label" )
plt. ylabel ( "y - label" )
plt. plot ( x , y )
plt. grid ( )
plt. show ( )
显示结果如下:
以下实例添加一个简单的网格线,axis 参数使用 x,设置 x 轴方向显示网格线:
实例
import matplotlib. pyplot as plt
x = np. array ( [ 1 , 2 , 3 , 4 ] )
y = np. array ( [ 1 , 4 , 9 , 16 ] )
plt. title ( "yssmx grid() Test" )
plt. xlabel ( "x - label" )
plt. ylabel ( "y - label" )
plt. plot ( x , y )
plt. grid ( axis = 'x' ) # 设置 y 就在轴方向显示网格线
plt. show ( )

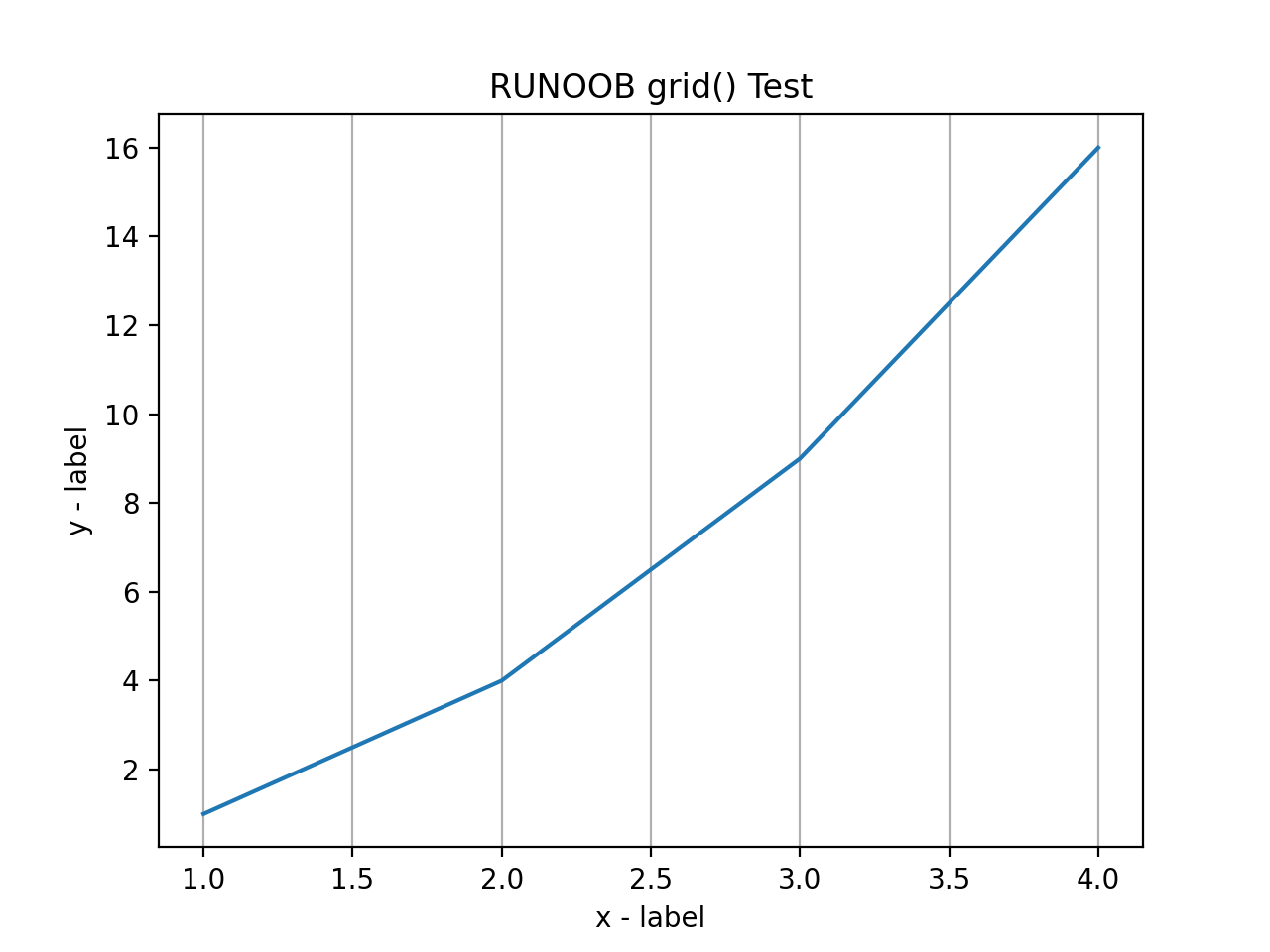

显示结果如下:
以下实例添加一个简单的网格线,并设置网格线的样式,格式如下:
grid(color = 'color', linestyle = 'linestyle', linewidth = number)
参数说明:
color: 'b' 蓝色,'m' 洋红色,'g' 绿色,'y' 黄色,'r' 红色,'k' 黑色,'w' 白色,'c' 青绿色,'#008000' RGB 颜色符串。
linestyle: '‐' 实线,'‐‐' 破折线,'‐.' 点划线,':' 虚线。
linewidth :设置线的宽度,可以设置一个数字。
实例
import matplotlib. pyplot as plt
x = np. array ( [ 1 , 2 , 3 , 4 ] )
y = np. array ( [ 1 , 4 , 9 , 16 ] )
plt. title ( "yssmx grid() Test" )
plt. xlabel ( "x - label" )
plt. ylabel ( "y - label" )
plt. plot ( x , y )
plt. grid ( color = 'r' , linestyle = '--' , linewidth = 0.5 )
plt. show ( )

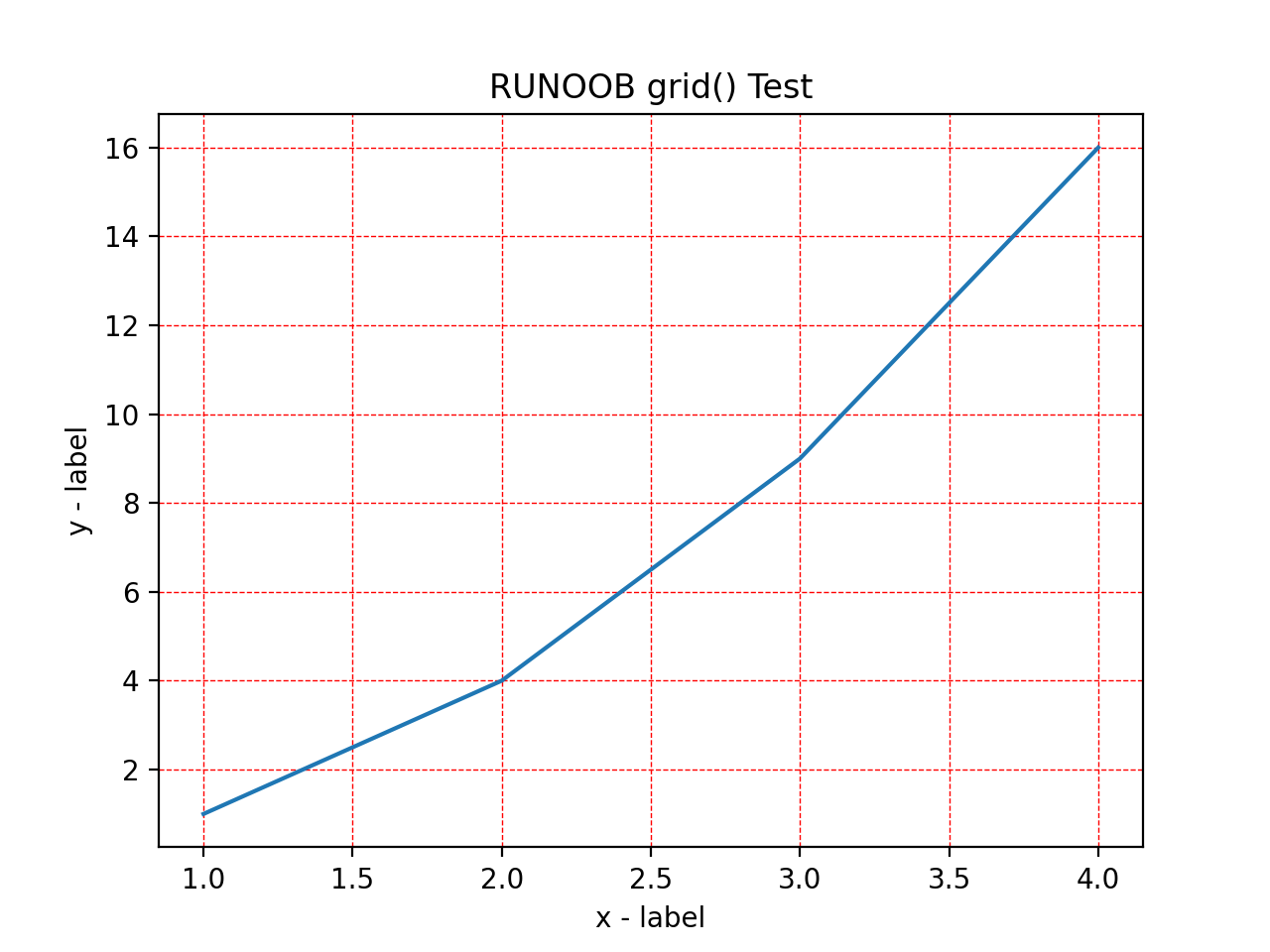

显示结果如下:
